Home      All Categories  Screw Barrel  Conical Twin Screw Barrel

  • 50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet
  • 50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet
  • 50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet
50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet

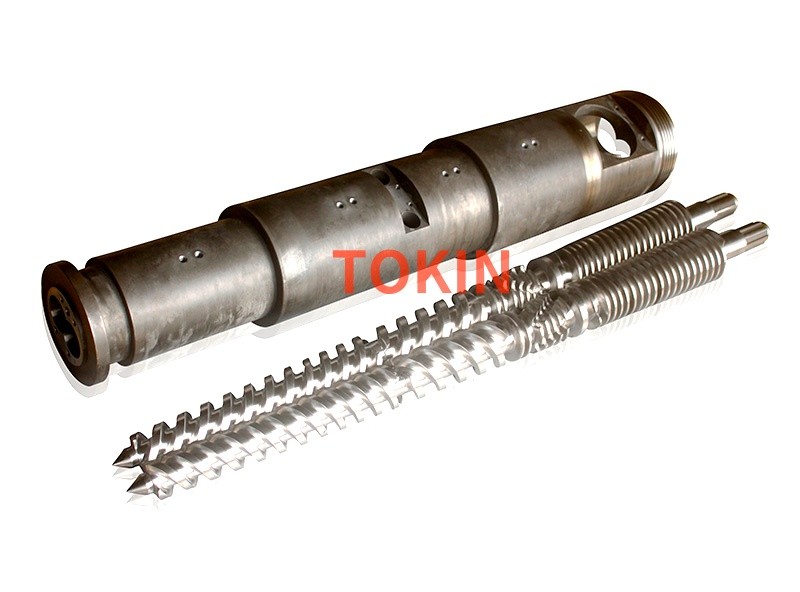

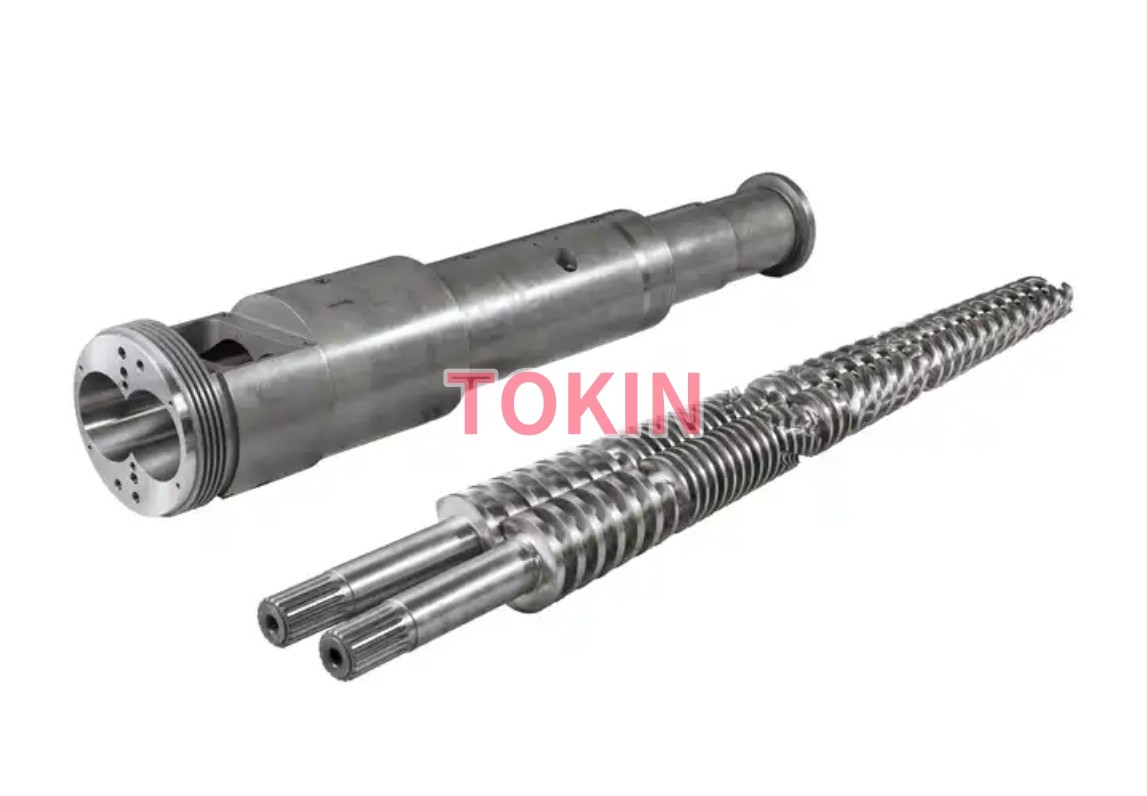

50mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet

Size: 50-105
Suitable Models: CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO...
Applcation: PP,PE,ABS,PVC,Pelleting,Pipe,Profile,Sheet,WPC,PVC,Soft PVC etc
Delivery Time: 15 days
Base Materials: SACM645,SCM440
Hardness: HRC58-70
Warranty : 12 Months Since Goods On Board

Product Description:

Diagram-of-the-twin-screw-extruder-showing-the-temperature-zones-and-the-configuration.jpg

Tech Introduction：

⁕Nitrided Process ：


Basis Materials: SACM645

Hardness: 70 HRC

Allication: Plastic Recycling ≤1 Times, Plastics With Glass Fiber≤15%

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188 (CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO)

Wear resistance: ★★★

Corrosion resistance: ★★★

⁕Bimetallic Process ：


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188 (CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO)

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★








Shipment:

1. The delivery time of Twin screw barrel set is usually 15-20 days after drawings are confirmed

2. Standard package is high quality wooden case


Tags:

PREVIOUS：75mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC SheetNEXT：55mm Co-Rotating Conical Twin Screw Barrel for Twin Screws Extruders of PVC Sheet
Inquiry:
RELATED PRODUCTS:

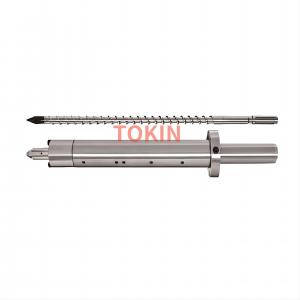

Wear Resisant FCS Screw Barrel Injection Unit For HT Series100Ton to 1600Ton
