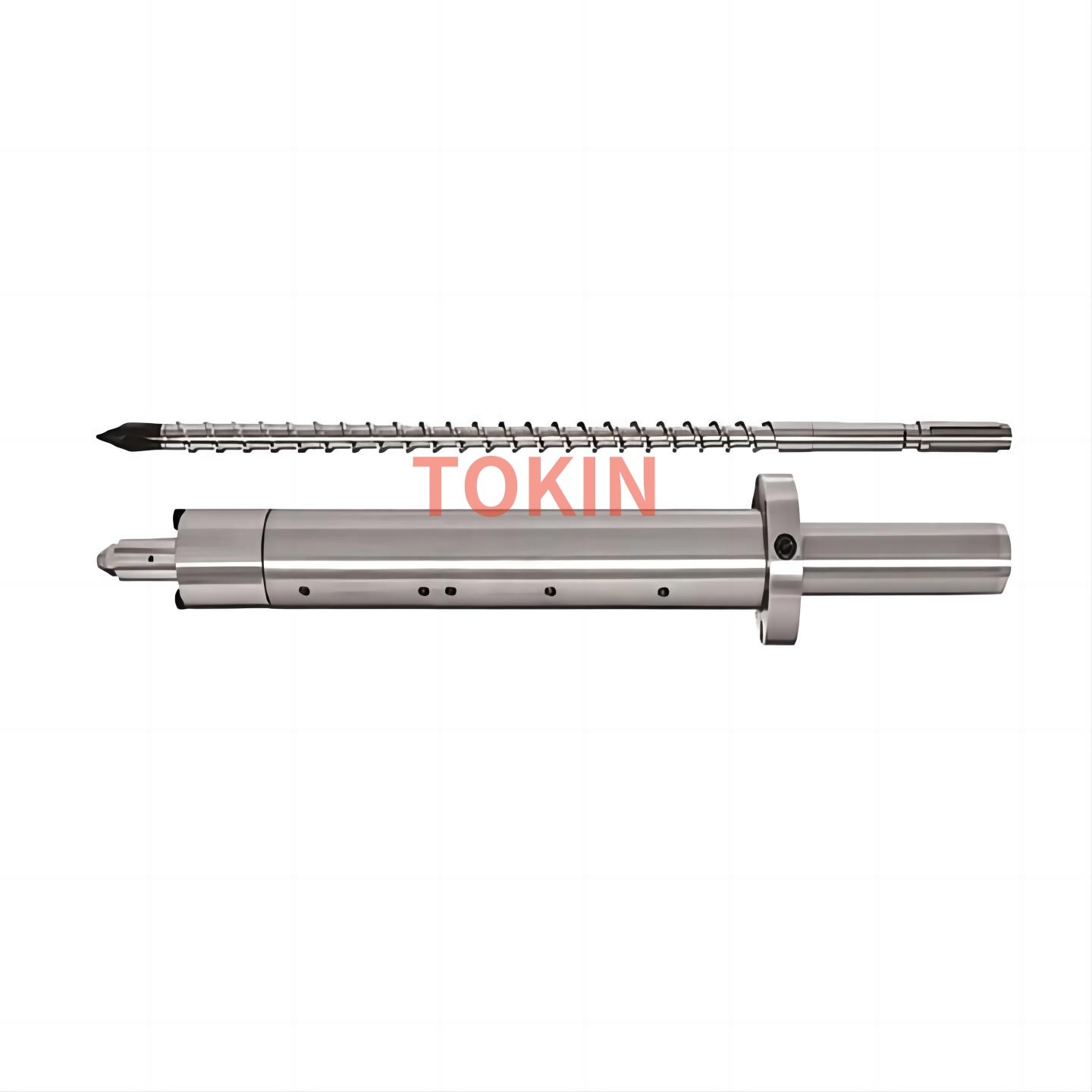

Chen Hsong 138T 36mm Injection Unit Injection Molding Bimetallic Screw and Barrel Set With Fast Delivery

Screw Size: D36x991mm
Barrel Size: OD125x975mm
Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Total Weight: 85 KG (Include wooden package)
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Process: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:


Tech Introduction：

⁕Bimetallic Process ：


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process：


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★






Shipment:

1. The delivery time of our screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment by TNT, SF, FedEx, DHL, UPS, EMS and etc.


We manufacturing and offering screw barrels for :


  • Haitian Injection Molding System

  • Haida Injection Molding System

  • Borche Injection Molding Systems

  • Battenfeld Extrusion Systems

  • Yizumi Injection Molding Systems

  • HAITAI Injection Molding System

  • Hwamda Injection Molding Systems

  • LOG Injection Molding Systems

  • Cincinnati Milacron Extrusion Systems

  • BOLE Injection Molding System

  • JWELL Extrusion Systems

  • Tederic Injection Molding Systems

  • Demag Injection Molding Systems

  • Engel Injection Molding Systems

  • Fanuc Injection Molding Systems

  • Husky Injection Molding Systems

  • JSW Injection Molding Systems

  • Kawaguchi Injection Molding Systems

  • Krauss-Maffei Extrusion Systems

  • Mitsubishi Injection Molding Systems

  • Nissei Injection Molding Systems

  • Sumitomo Injection Molding Systems

  • Toshiba Injection Molding Systems

  • Toyo Injection Molding Systems
