  • HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon
  • HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon
  • HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon
  • HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon
HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber NylonHAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber NylonHAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber NylonHAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon

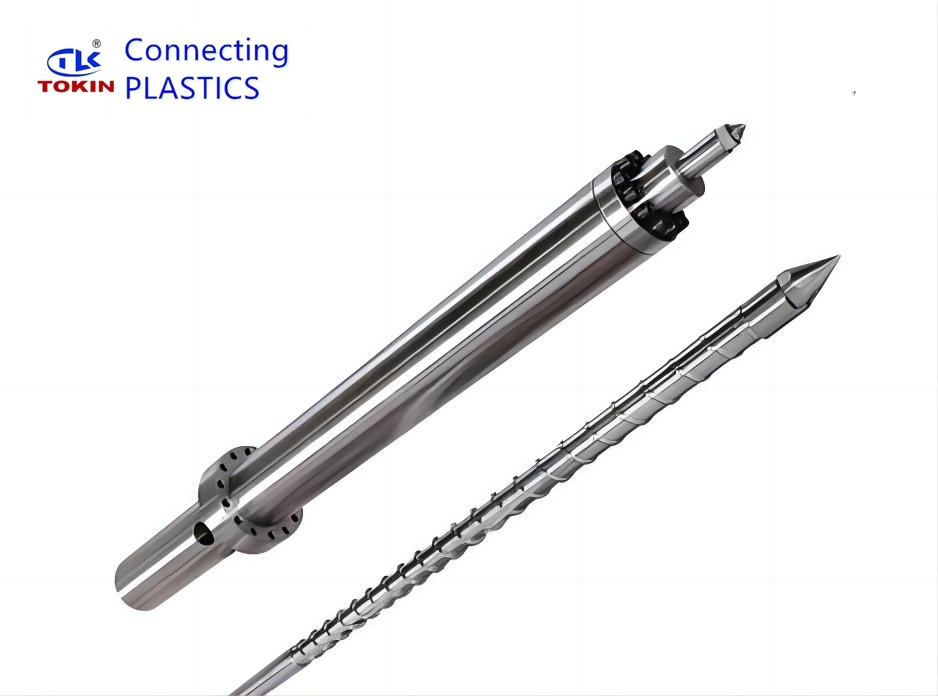

HAITAI HTL2680 HTW2300 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon

Screw Size: D45x1510mm
Barrel Size: OD135x1469mm
Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Total Weight: 70 KG (Include wooden package)
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Process: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...
Warranty Time: 12 Months For General Plastics With GF≤30%

Product Description:

TOKIN Steel materials: JIS-SACM645 (38CrMoala), JIS-SCM440 (42CrMo), SKD61, SKD11, SUS316, SUS304, DC53 etc.  Ensuring excellent mechanical properties and superior performance under extreme plasticizing conditions.









Shipment:

1. The delivery time of our screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment by TNT, SF, FedEx, DHL, UPS, EMS and etc.


Tags:

PREVIOUS：HAITAI NHTX500 75mm Injection Unit Bimetallic Injection Molding Screw and Barrel For Glass fiber NylonNEXT：HAITAI HTL1380 HTW1200 45mm Injection Unit Bimetallic Injection Molding Screw and Barrel For high Glass fiber Nylon
