Haitian Machine HTF90 MA90-32mm 36mm 40mm Injection Moldng Screw Barrel

Haitian Machine HTF90 MA90-32mm 36mm 40mm Injection Moldng Screw Barrel

Screw Size: D40x952mm
Barrel Size: OD90x940mm
Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Set Total Weight: ~ 45 KG
Delivery time: 20 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

40＄-1000＄

Product Description:

R (2)_副本(1).jpg

Haitian HTF/MA90T -Screw Diameter 36mm

Tech Introduction：

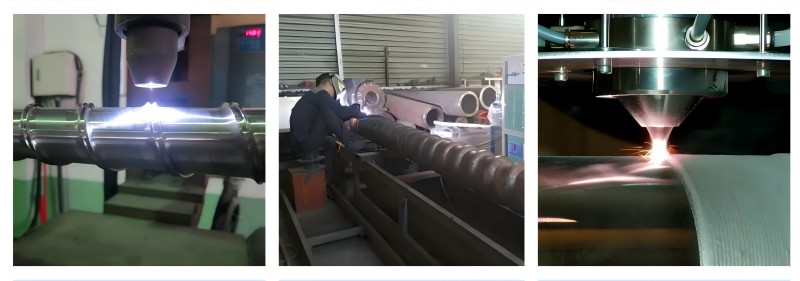

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★


FAQS：

Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your 30% TT.

Q: What is your factory delivery time ?
A: Standard delivery time is 20 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15 days, also we have 2000 stock items ready to ship out.

Q: What is your accepted payment type?
A: T/T ,Western Union and Alipay

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: Our warranty time is 12 months for all screw barrel and accessories products After delivery.





We manufacturing and offering screw barrels for :

Haitian Injection Molding Systems	ChenHsong Injection Molding Systems	Hwamda Injection Molding Systems
Yizumi Injection Molding Systems	Nissei Injection Molding Systems	TOYO Injection Molding Systems
Toshiba Injection Molding Systems	Borche Injection Molding Systems	Haida Injection Molding Systems
JSW Injection Molding Systems	Arburg Injection Molding Systems	Engel Injection Molding Systems
Krauss Maffei Injection Molding Systems	Battenfeld Extrusion Systems	Tederic Injection Molding Systems
Cincinatti Milacron Injection Systems	Kawaguchi Injection Molding Systems	Jwell Extrusion Systems
Sumitomo Injection Molding Systems	Tederic Injection Molding Systems	Fanuc Injection Molding Systems
Haixing Injection Molding System	FCS Injection Molding System
