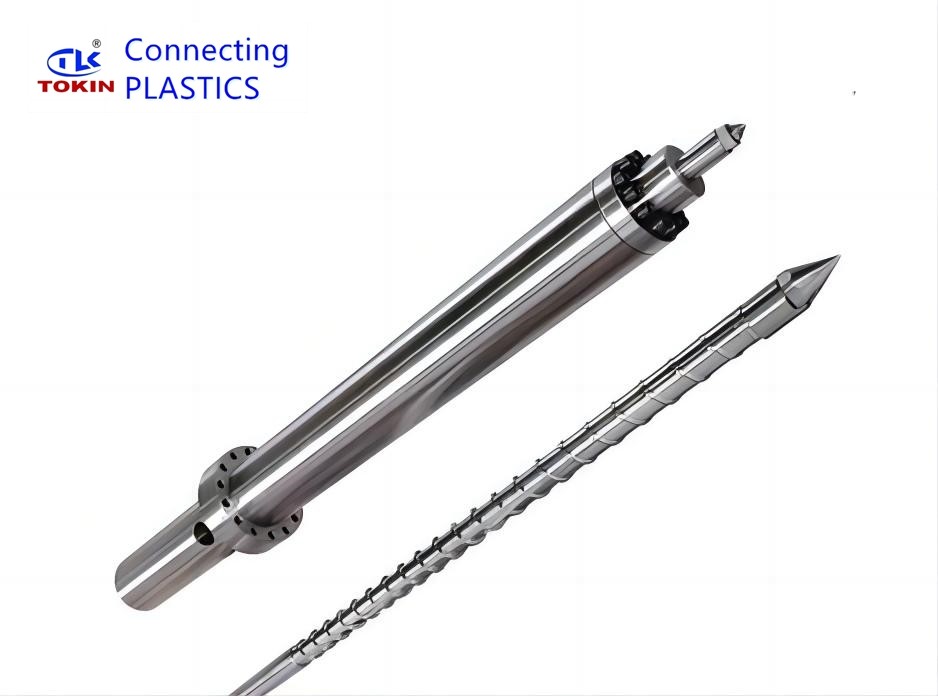

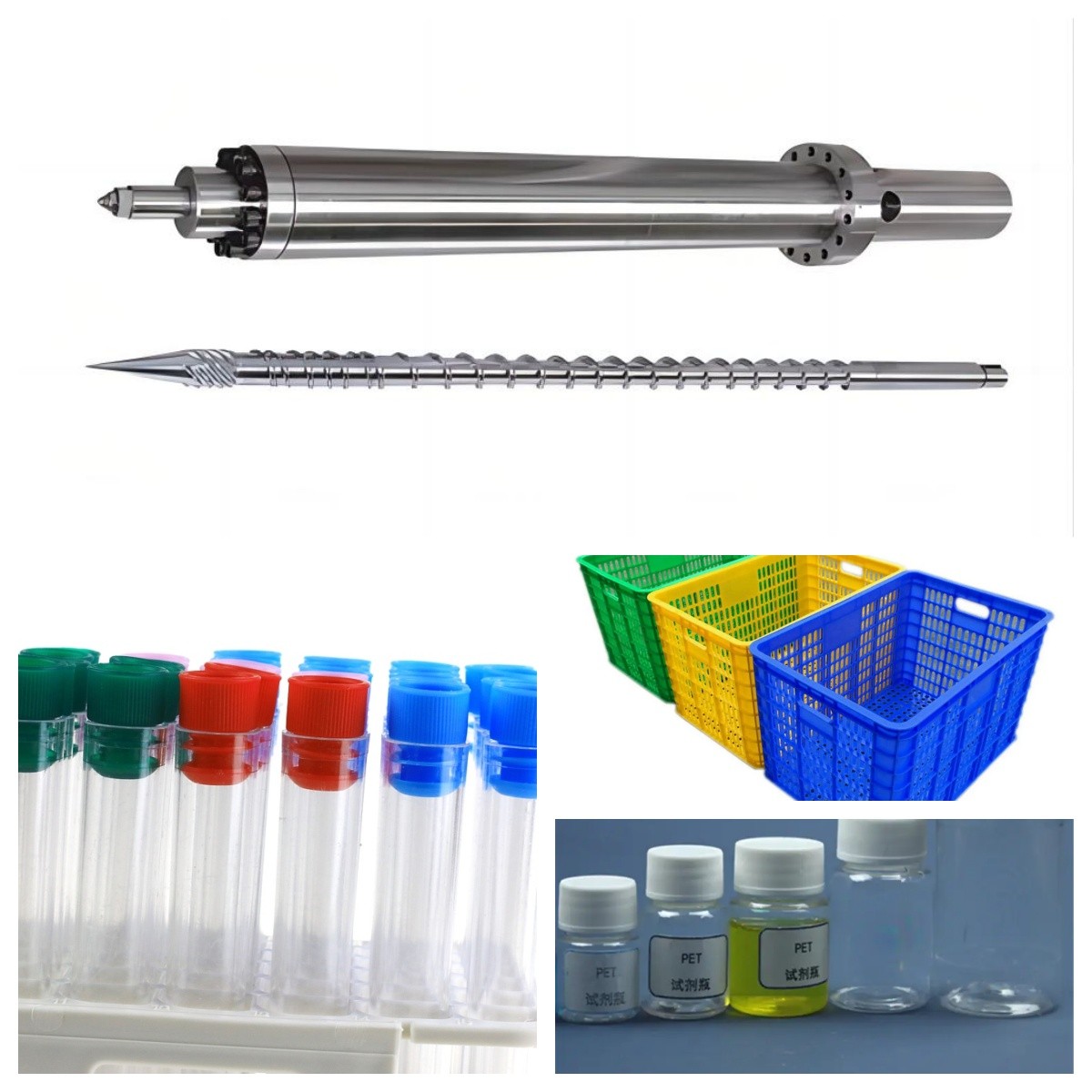

Screw diameter: 40mm 45mm Screw L/D ratio: 22.5 20 Accessories: Screw head, Rings, Nozzle Tip Set Base Materials: SACM645,SCM440,SKD61 Steel Process: Nitrided & Bimetallic & Chrome Hardness: HRC55-65 Suitable for: PP, PE, ABS, PET, PVC, PS ... Delivery time: 20-25 days
Screw diameter: 40mm 45mm
Screw L/D ratio: 22.5 20
Tech Introduction:
⁕Bimetallic Process :
Basis Materials: SACM645, SACM440, SKD61, SKD11
Hardness: 53-58 HRC
Coating Thickness: 1.5-2.0mm
Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%
Wear resistance: ★★★★★
Corrosion resistance: ★★★
Basis Materials: SACM645, SACM440, SKD61, SKD11
Chrome Thickness: 0.02-0.08mm
Hardness of Chrome: >700 HV
Finish Grade: Ra ≤0.4
Allication: PVC and other high corrosive plastics
Wear resistance: ★★
Corrosion resistance: ★★★★★
⁕Full Hardened Process:
Basis Materials: DC53, D2, M2, SKD61, SKD11 ...
Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni
Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)
Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%
Wear resistance: ★★★★★
Corrosion resistance: ★★★★★
We manufacturing and offering screw barrels for :
Haitian Injection Molding Systems | ChenHsong Injection Molding Systems | Hwamda Injection Molding Systems |
Yizumi Injection Molding Systems | Nissei Injection Molding Systems | TOYO Injection Molding Systems |
Toshiba Injection Molding Systems | Borche Injection Molding Systems | Haida Injection Molding Systems |
JSW Injection Molding Systems | Arburg Injection Molding Systems | Engel Injection Molding Systems |
Krauss Maffei Injection Molding Systems | Battenfeld Extrusion Systems | Tederic Injection Molding Systems |
Cincinatti Milacron Injection Systems | Kawaguchi Injection Molding Systems | Jwell Extrusion Systems |
Sumitomo Injection Molding Systems | Tederic Injection Molding Systems | Fanuc Injection Molding Systems |
Haixing Injection Molding System |
Shipment:
1. The delivery time of Injection Molding screw barrel is usually 20-25 days after drawings are confirmed.
2. Faster air shipment can by TNT, SF, FedEx, DHL, UPS, EMS and etc.
3. Standard Packages are high quality wooden cases
Bigger Barrel work of D175xOD410xL4540mm for Woo
General IMM Screws for PP with Nylon 30 percent
New bimetallic with chrome plating screws and ba
