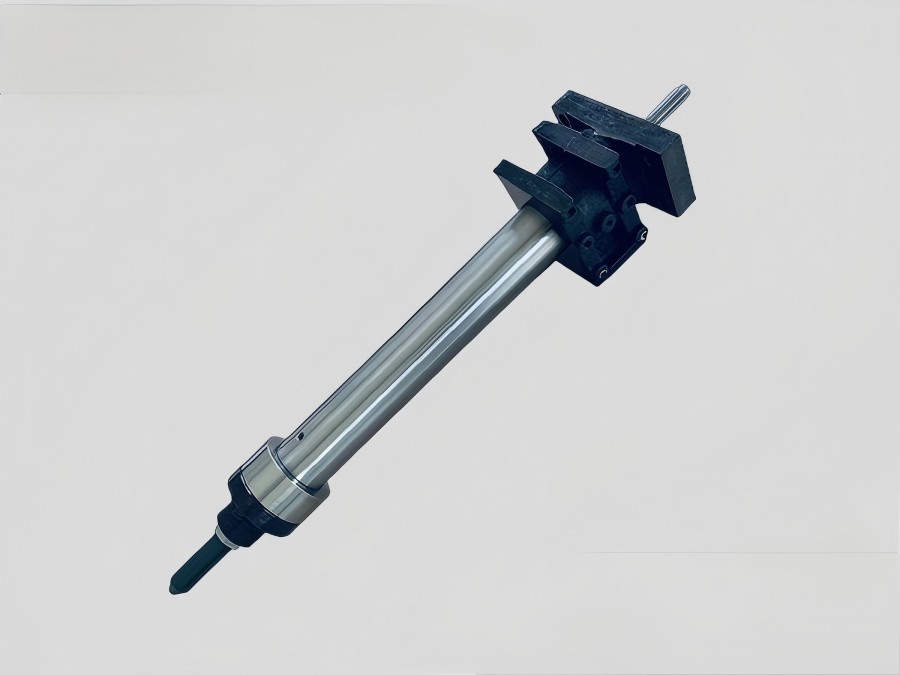

JSW 350T J350ADS Injection Molding Screw Barrel 58mm With Nozzle Tip Set

JSW 350T J350ADS Injection Molding Screw Barrel 58mm With Nozzle Tip Set

Screw Dia: 58mm
Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Warantty Time: 12 Months for plastics with GF≤35%
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

TOKIN MARKETTING -01(1).jpg

Materials & Treatments：

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★


FAQS：

Q: Which models' drawings do you have ?
A: We have a complete database of drawings, please tell us the machine name and model, then we can check database and quote.

Q: When will you arrange the production?
A: We can arrange production soon after order & drawings confirmation

Q: What is your delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time can be 15-20 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: EMS, TNT, UPS, FEDEX and other high-efficient logistric forwarders

Q: What is your warranty Time ?
A: 12 months when shipment on board

Customers Machinery List :

Haitian Injection Molding Systems	Chen Hsong Injection Molding Systems	Hwamda Injection Molding Systems
Yizumi Injection Molding Systems	Nissei Injection Molding Systems	TOYO Injection Molding Systems
Toshiba Injection Molding Systems	Borche Injection Molding Systems	Haida Injection Molding Systems
JSW Injection Molding Systems	Arburg Injection Molding Systems	Engel Injection Molding Systems
Krauss Maffei Injection Molding Systems	Battenfeld Extrusion Systems	Tederic Injection Molding Systems
Cincinatti Milacron Injection Systems	Kawaguchi Injection Molding Systems	Jwell Extrusion Systems
Sumitomo Injection Molding Systems	Tederic Injection Molding Systems	Fanuc Injection Molding Systems
Haixing Injection Molding System	FCS Injection Molding System	LOG Injection Molding Systems
