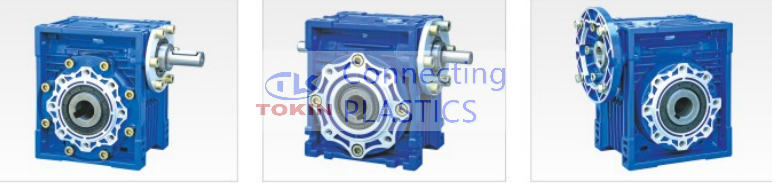

NMRV075 NMRV090 NMRV110 Worm gear reducer

Motor Power: 0.16kw - 30kw
Speed Ratio: 150
Output speed: 1-1550（rpm）
Applied Fields : Rubber and plastic machinery, building materials machinery, environmental protection machinery, lifting logistics, ceramic machinery, electronic machinery, food packaging, metallurgical machinery, printing and dyeing machinery, beverage machinery, petrochemical industry, stage machinery and other fields.

PDF

Product Description:

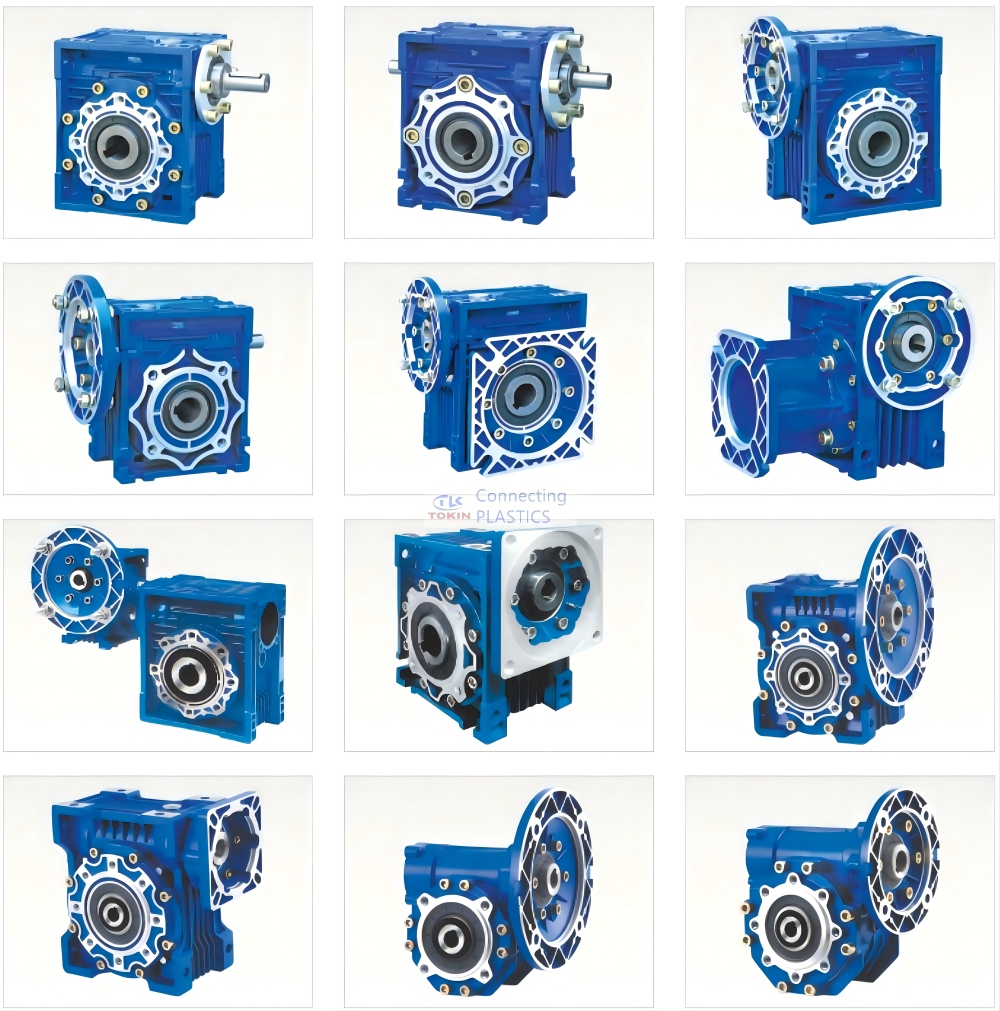

The NMRV Series Gear Reducer is a highly reliable and efficient power transmission solution manufactured by our company. It is designed to meet the needs of various industrial applications, providing smooth and precise motion control.

The NMRV Series Gear Reducer features a compact design and a wide range of gear ratio options, offering versatility in meeting different torque and speed requirements. It is composed of a worm gear and a worm wheel, which work together to transmit rotational motion and power between two shafts at a desired speed reduction.

Kind reminding:

(1) Please do not apply pressure to the output parts and boxes of the reducer during installation, and please meet the corresponding requirements of coaxiality and verticality between the machine and the reducer when connecting.

(2) The lubricating oil should be replaced again after the initial operation of the reducer to 400 hours, and the subsequent oil change cycle is about 4000 hours.

(3) Sufficient lubricating oil should be retained in the reducer box and checked regularly.

(4) Pay attention to keep the appearance of the reducer clean, and remove dust and dirt in time to facilitate heat dissipation.

Tags:NMRV075 NMRV090 NMRV110 Worm gear reducer
