Home       All Categories    Screw Barrel    Injection Molding Screw Barrel

  • Nissei PS20E 16mm Injection Molding Screw and Barrel Unit
  • Nissei PS20E 16mm Injection Molding Screw and Barrel Unit
  • Nissei PS20E 16mm Injection Molding Screw and Barrel Unit
Nissei PS20E 16mm Injection Molding Screw and Barrel Unit Nissei PS20E 16mm Injection Molding Screw and Barrel Unit Nissei PS20E 16mm Injection Molding Screw and Barrel Unit

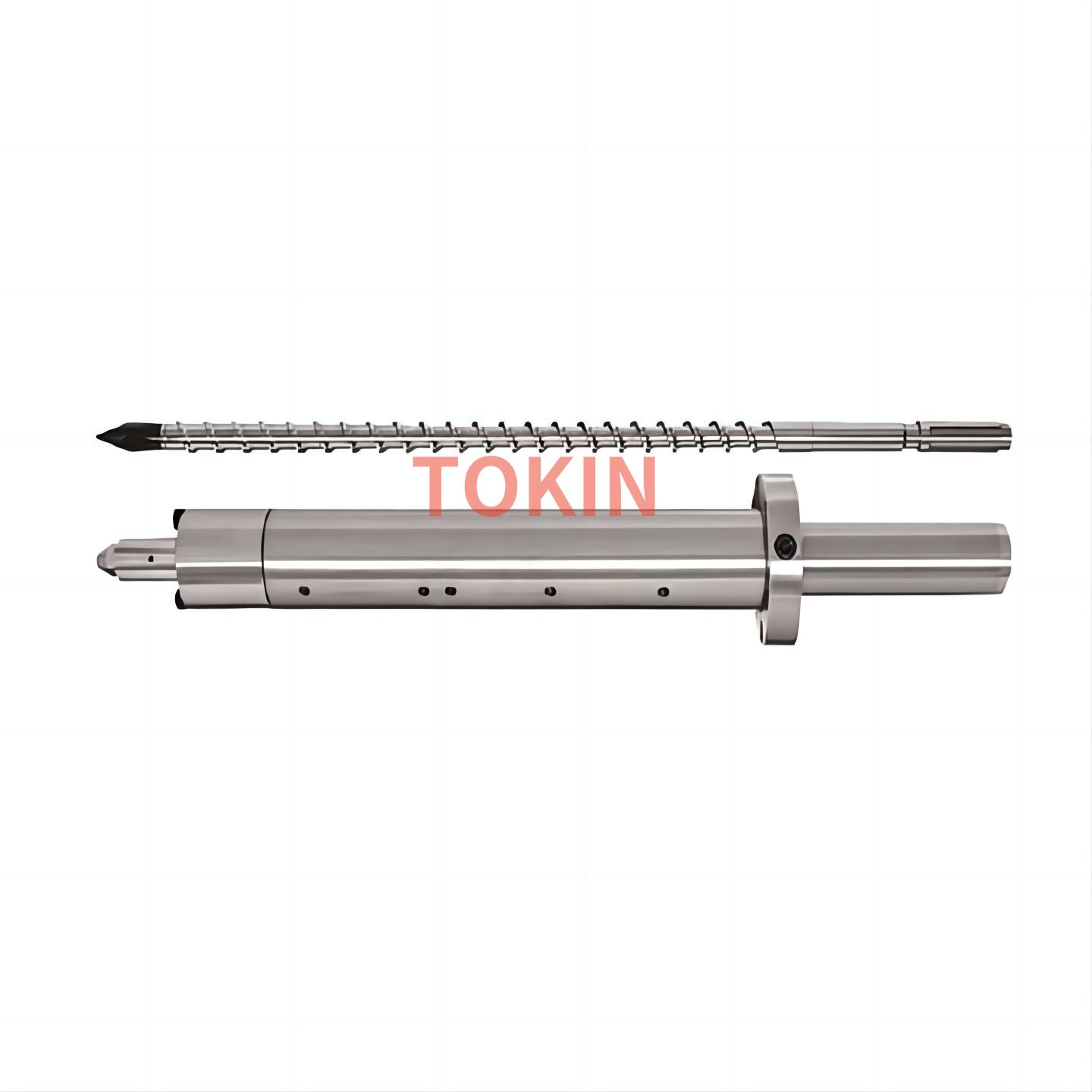

Nissei PS20E 16mm Injection Molding Screw and Barrel Unit

Screw Size: D16x433mm
Barrel Size: OD68x423mm

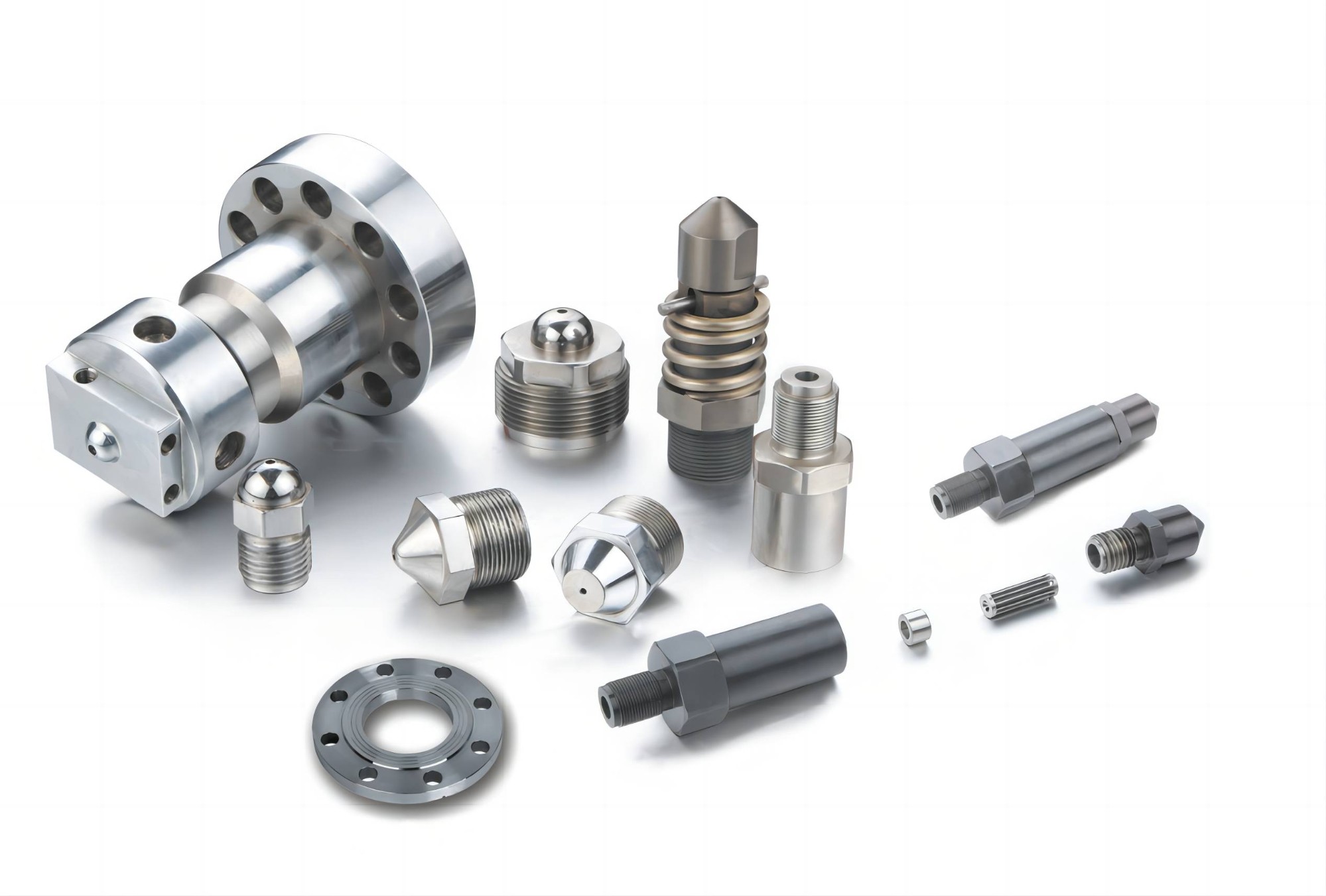

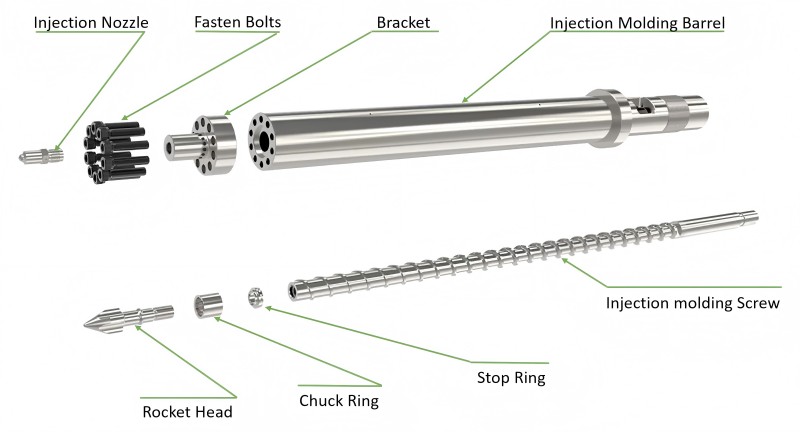

Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Total Weight: 15 KG (Include wooden package)
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Process: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:


Tech Introduction：

⁕Bimetallic Process ：


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process：


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★







Shipment:

1. The delivery time of our screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment by TNT, SF, FedEx, DHL, UPS, EMS and etc.
