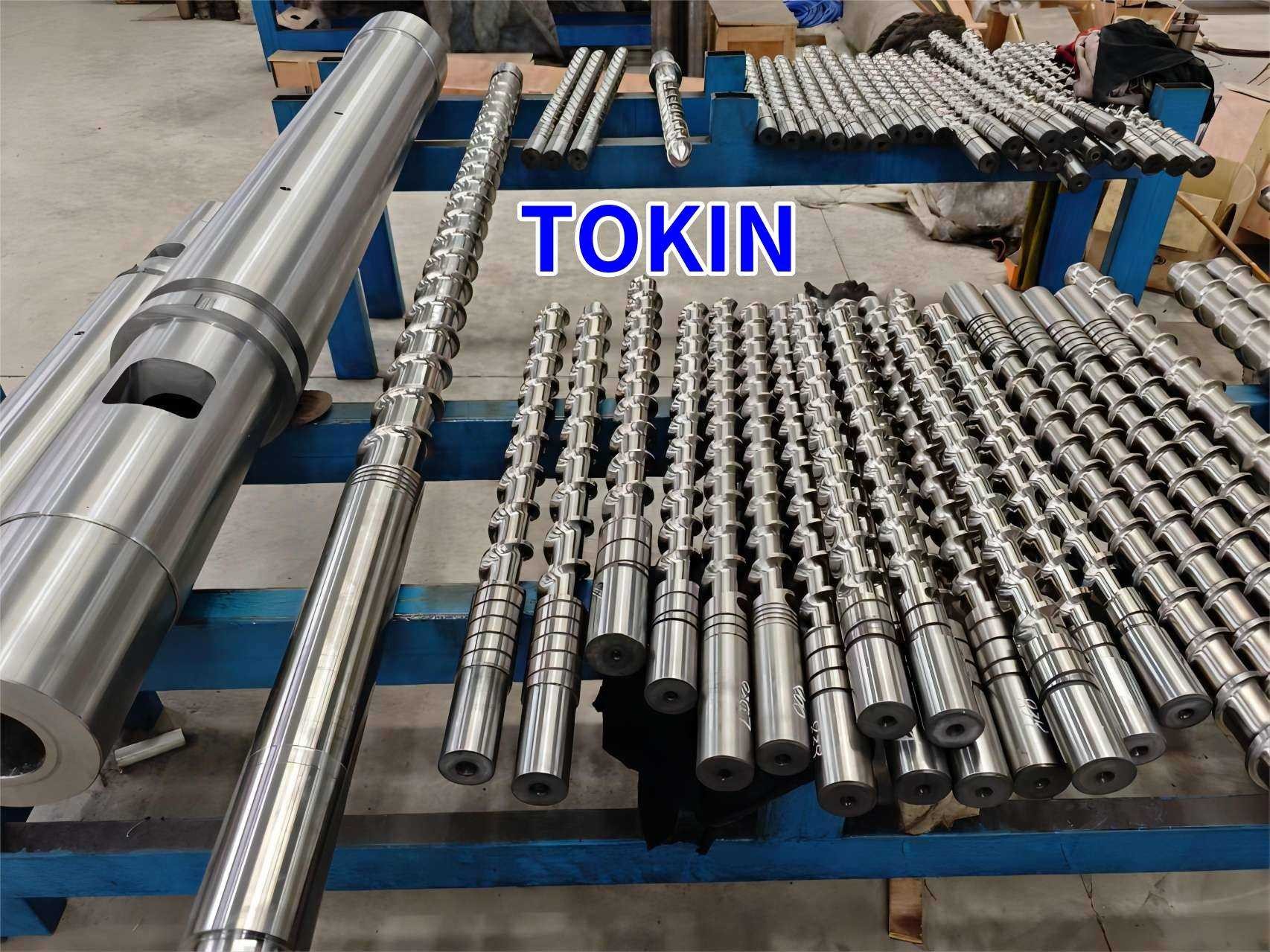

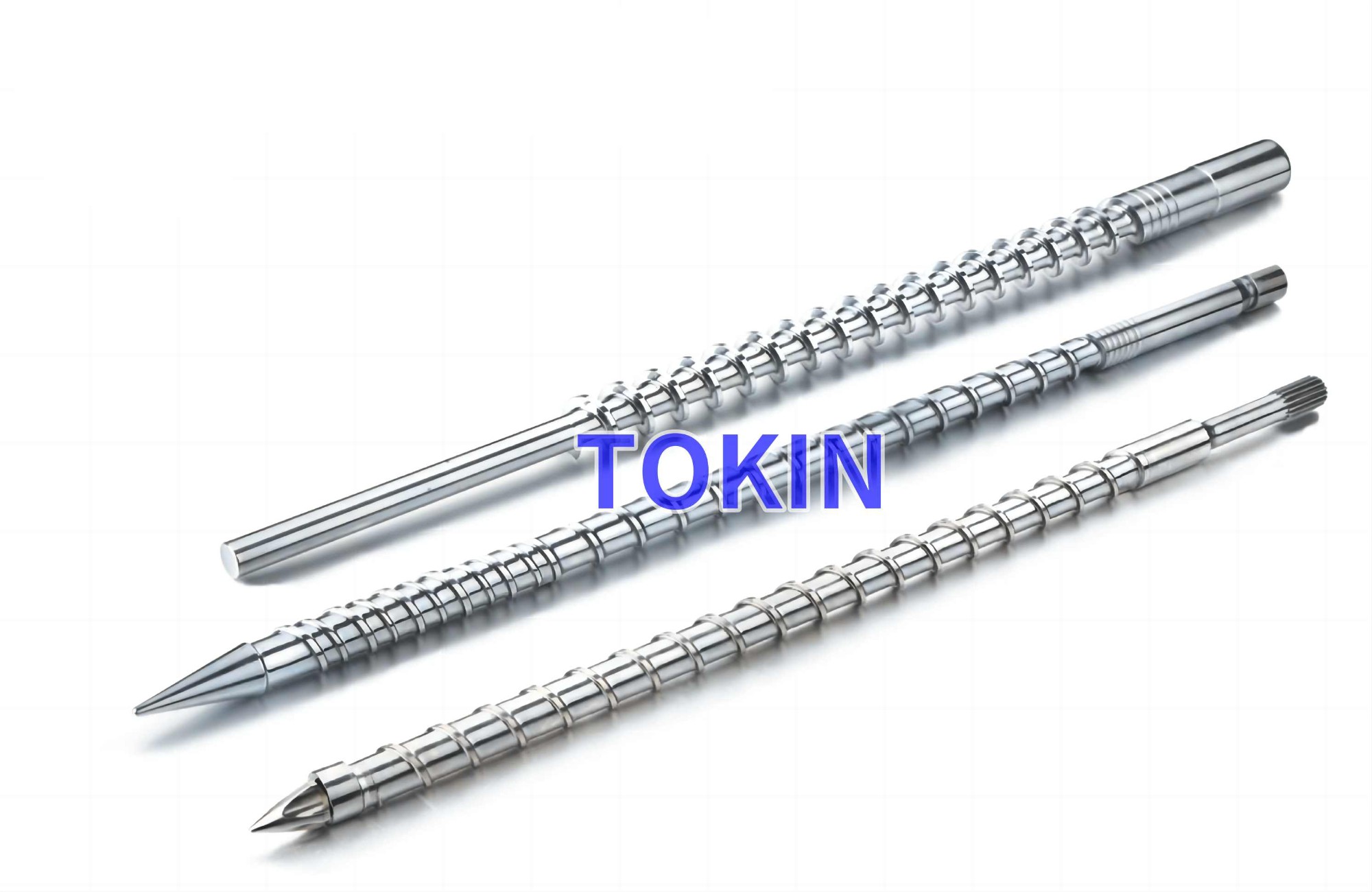

Sumitomo 180T SE180EV 50mm Injection Unit Injection Molding Screw Barrel With Nozzle Tip

Sumitomo 180T SE180EV 50mm Injection Unit Injection Molding Screw Barrel With Nozzle Tip

Screw Dia 50mm
Accessories: Screw head, Rings, Nozzle head set
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC55-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

Tech Introduction：

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★




We manufacturing and offering screw barrels for :

Haitian Injection Molding Systems	ChenHsong Injection Molding Systems	Hwamda Injection Molding Systems
Yizumi Injection Molding Systems	Nissei Injection Molding Systems	TOYO Injection Molding Systems
Toshiba Injection Molding Systems	Borche Injection Molding Systems	Haida Injection Molding Systems
JSW Injection Molding Systems	Arburg Injection Molding Systems	Engel Injection Molding Systems
Krauss Maffei Injection Molding Systems	Battenfeld Extrusion Systems	Tederic Injection Molding Systems
Cincinatti Milacron Injection Systems	Kawaguchi Injection Molding Systems	Jwell Extrusion Systems
Sumitomo Injection Molding Systems	Tederic Injection Molding Systems	Fanuc Injection Molding Systems
Haixing Injection Molding System	FCS Injection Molding System
