Application for: Conical Twin Screw Extruder Input Rotation Speed: 1500 Output Speed: 37.7 Input Power (KW) : 55 Delivery Time: 1-7 Days
Model | SZ45 | SZ50 | SZ55 | SZ65 | SZ80 | SZ92 |
Input Rotation Speed | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Output Speed | 44.8 | 37.8 | 37.5 | 39.1 | 37.7 | 40 |
Input Power (KW) | 18.5 | 22 | 30 | 37 | 55 | 110 |
Single shaft output Torque | 1972 | 2779 | 3820 | 4518 | 6786 | 13130 |
Distribution Axis | 2 40' | 2 58'12 | 2 36'14 | 2 11'16 | 2 0'18" | 1 52'3.64" |
Connection Spline Dimensions | 8-48x42x8 | 8-54x46x9 | 6-60x53x14 | 8-65x56x10 | 8-72x62x12 | 10-98x92x14 |

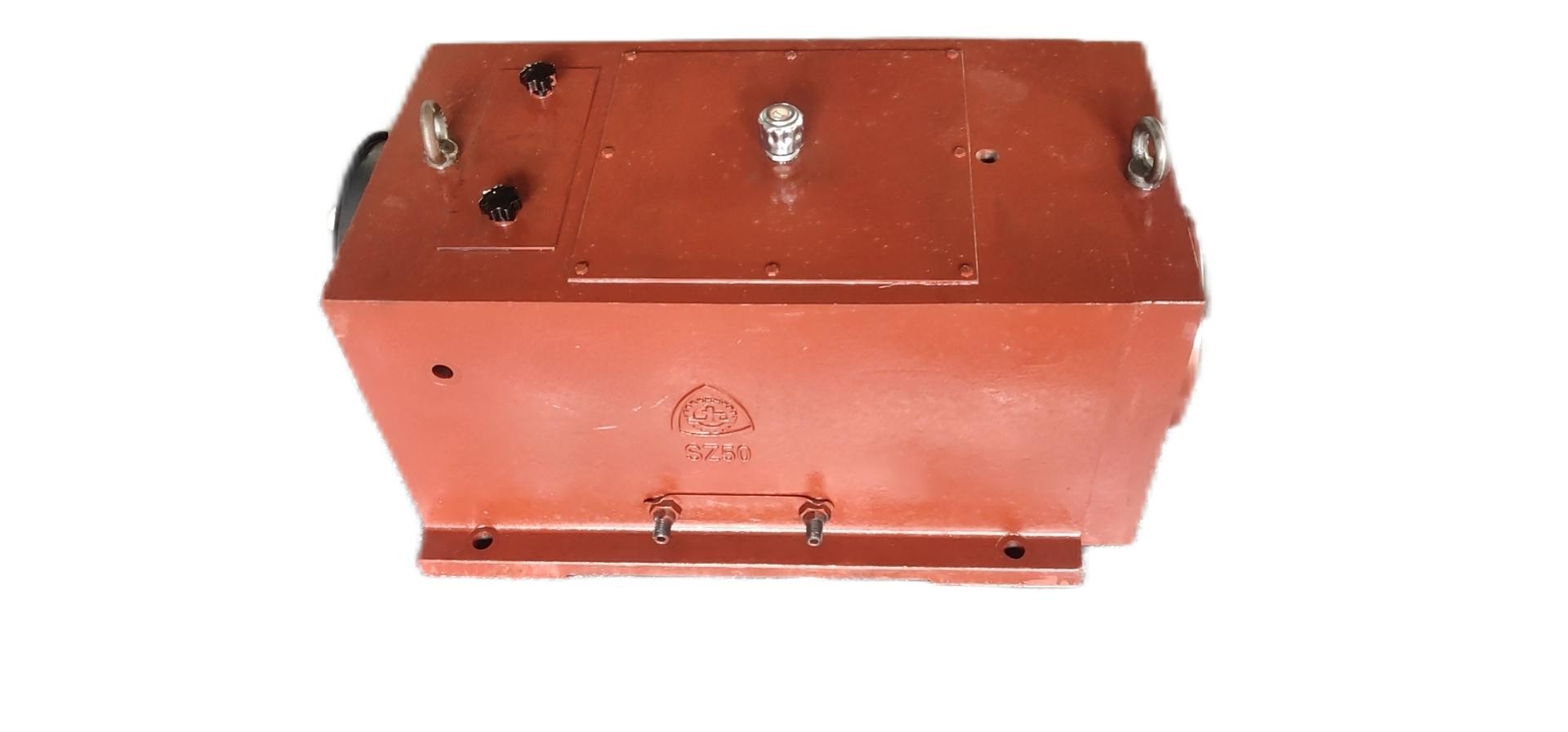

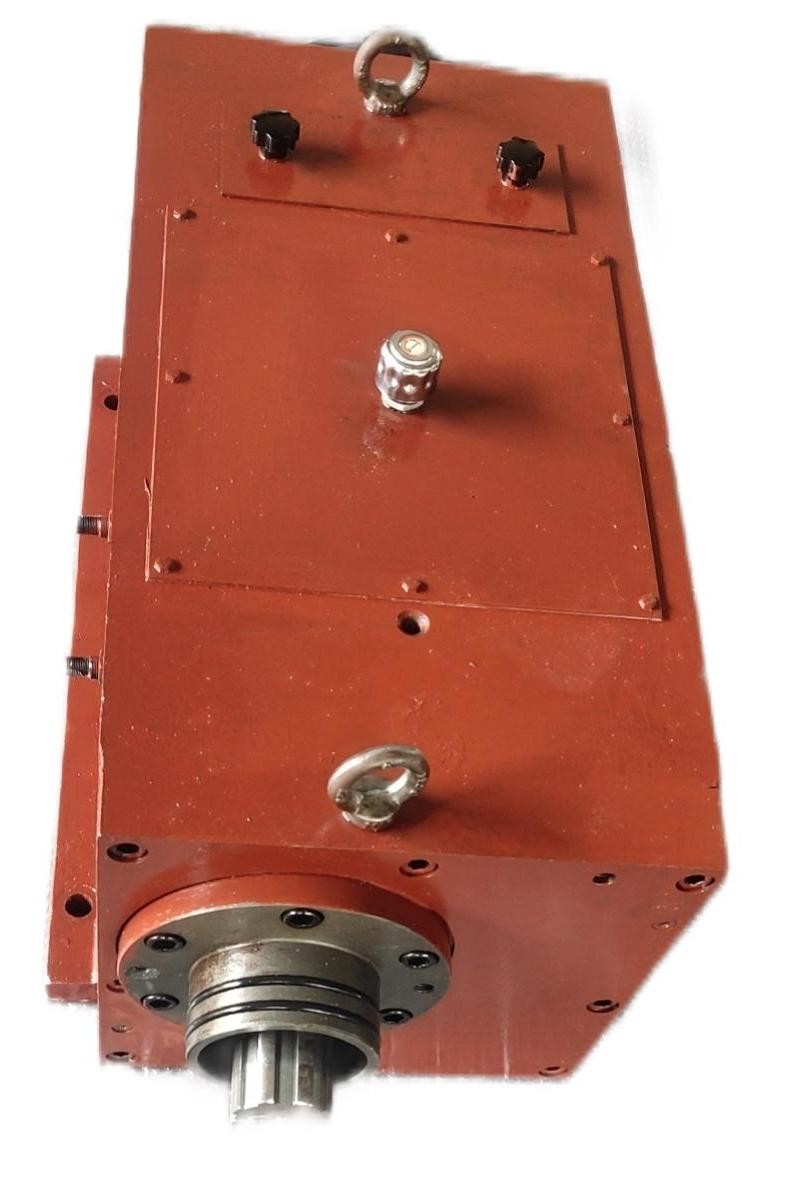

SZ series hard tooth surface transmission device is composed of reducer and distributor. It is a specialized product for all kinds of conical twin screw extruders.
1. The gears of the reducer are made of high-strength alloy steel and carburized steel, gear hardness is high to HRC58-62, and the operating noise is low.
2. The small cone angle helical gears of the gear box are made of high-quality alloy steel. After being ground by a CNC gear hobbing machine, the gears are carburized and quenched to ensure high precision and high hardness.
3. The ductile iron shell and high-strength spherical thrust roller bearings make the project operate stably and withstand large axial thrust.
4. The reducer and distributor are equipped with cooling systems and can operate safely.
