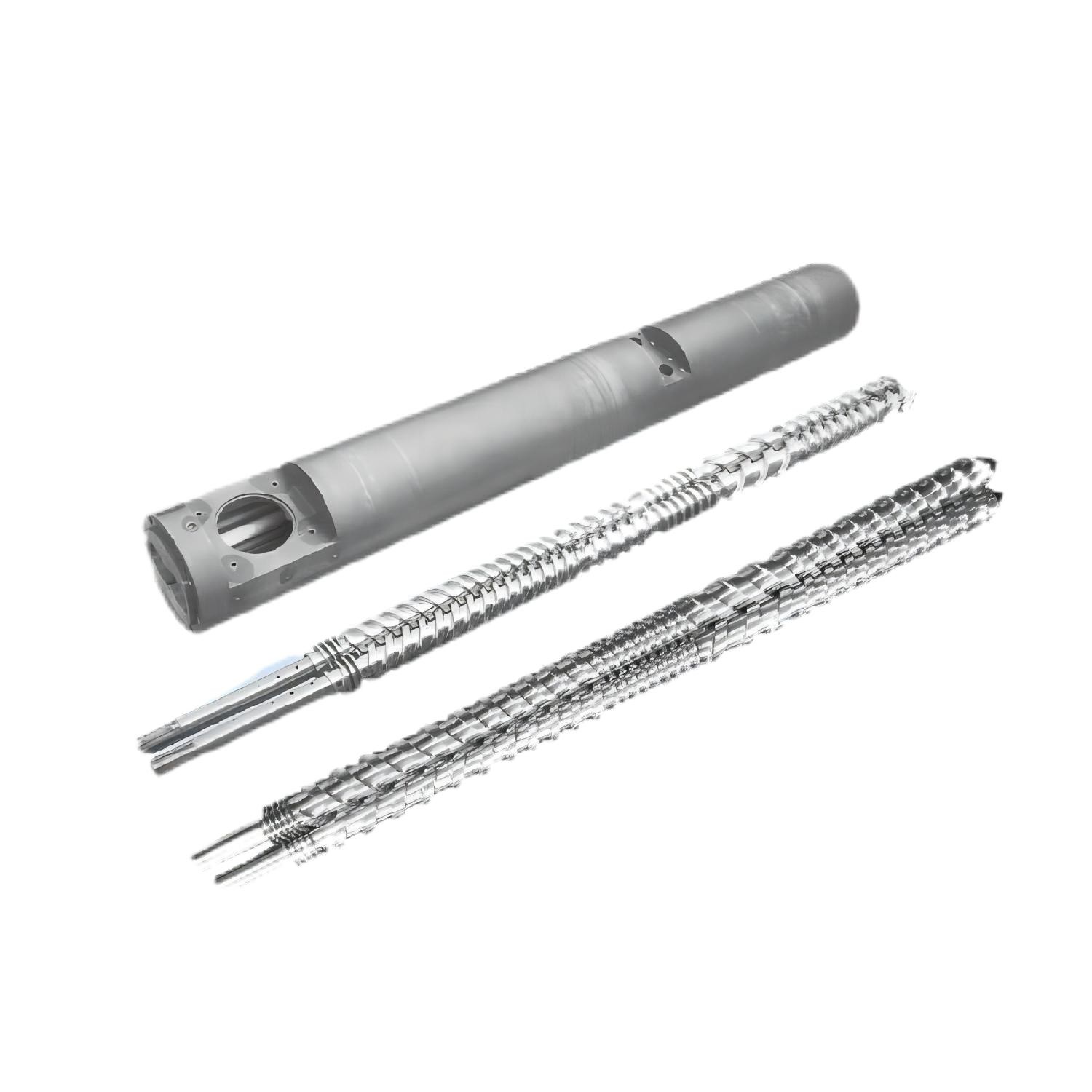

High-Performance 90mm Twin Screw Barrel For KraussMaffei KMD90-32P Twin Screw Extruder Profile Series

High-Performance 90mm Twin Screw Barrel For KraussMaffei KMD90-32P Twin Screw Extruder Profile Series

Size:75mm, 90mm, 114mm, 133mm
LD Ratio: 32
Applied Machine:Krauss Maffei KMD Series
Applied Plastics & Products:
Cable Ducts, Window Profile, Foam Profile
Delivery Time: 15-20 days
Base Materials: SACM645,SCM440
Treatment: Nitrided/Bimetallic/Chrome-Plating
Hardness: HRC65-HRC70

Product Description:

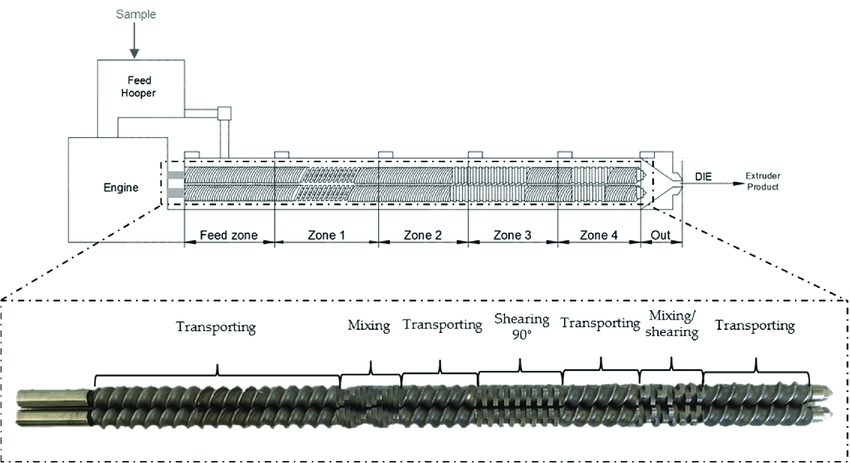

Diagram-of-the-twin-screw-extruder-showing-the-temperature-zones-and-the-configuration.jpg

Tech Introduction：

⁕Nitrided Process ：


Basis Materials: SACM645

Hardness: 70 HRC

Allication: Plastic Recycling ≤1 Times, Plastics With Glass Fiber≤15%

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188 (CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO)

Wear resistance: ★★★

Corrosion resistance: ★★★

⁕Bimetallic Process ：


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188 (CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO)

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★





Shipment:

1. The delivery time of Twin screw barrel set is usually 15-20 days after drawings are confirmed

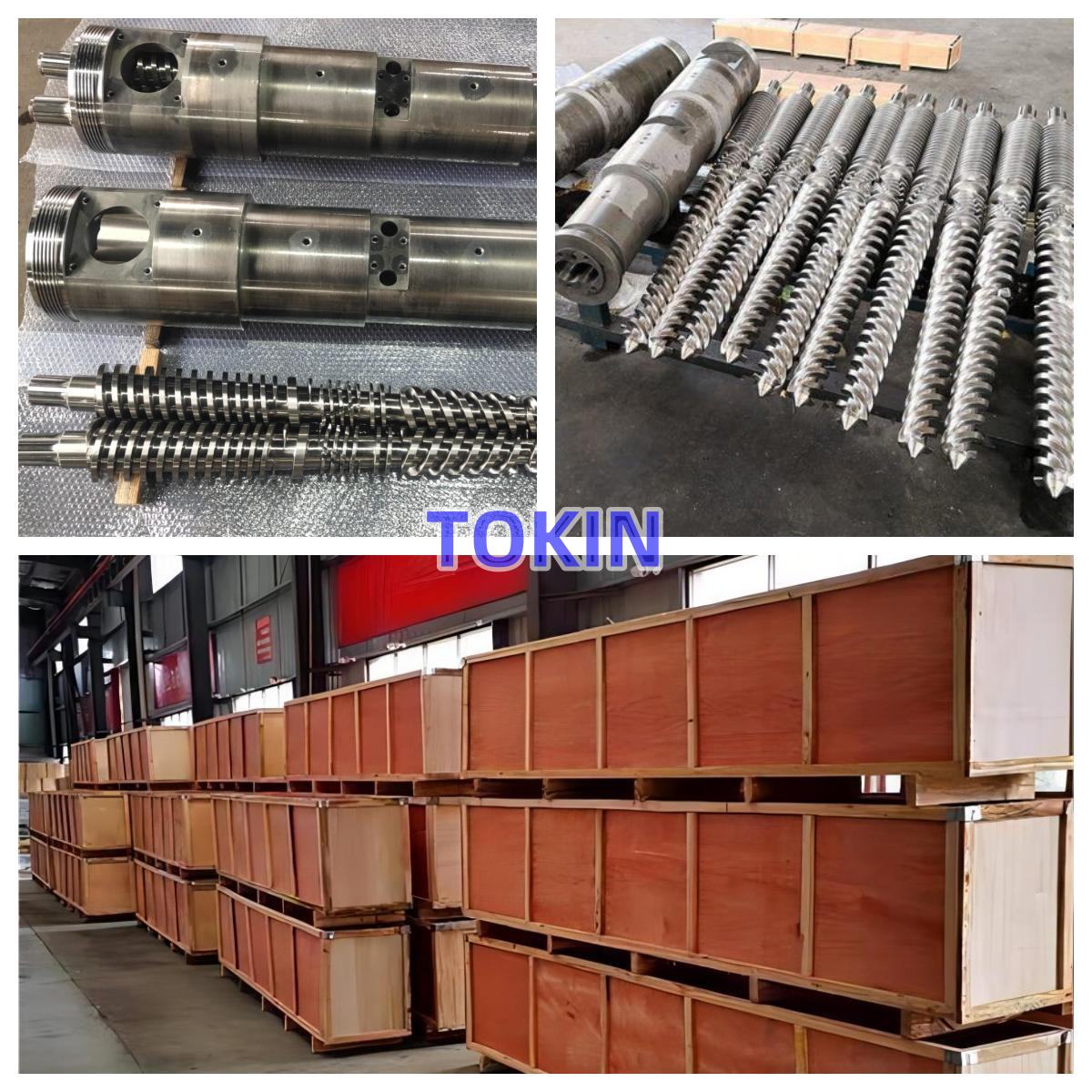

2. Our standard package is high quality wooden cases



Tags:

PREVIOUS：High-Performance 114mm Twin Screw Barrel For KraussMaffei KMD114-32P Twin Screw Extruder Profile Series NEXT：High-Performance 75mm Twin Screw Barrel For KraussMaffei KMD75-32P Twin Screw Extruder Profile Series
Inquiry:
RELATED PRODUCTS:

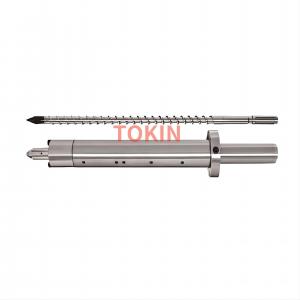

Lanson Machine GT5-LS260S 55MM Injection Molding Screw Barrel With Screw Tip Nozzel Set
