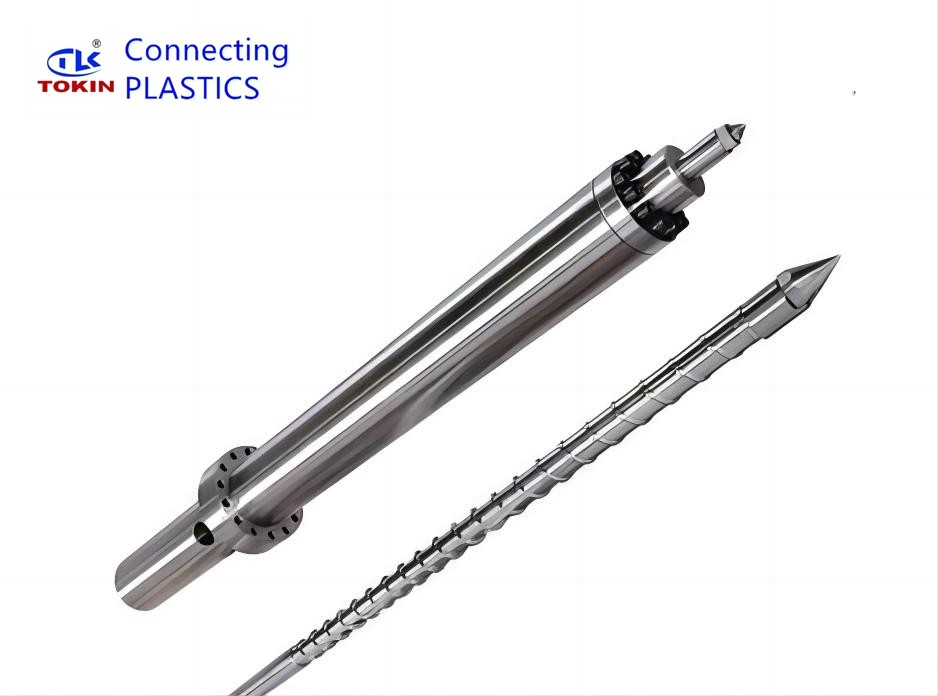

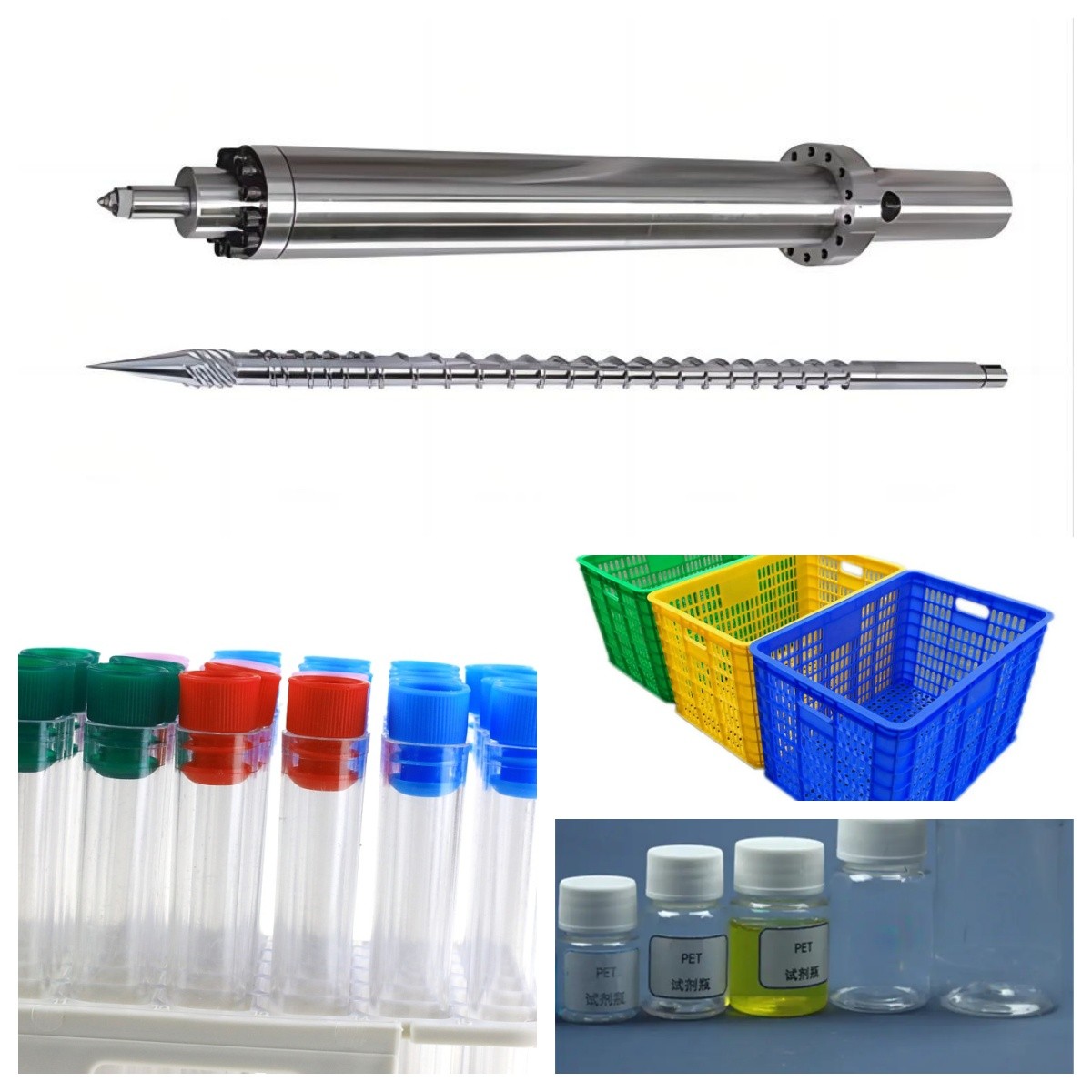

Screw diameter: 55mm 60mm 65mm 70mm Screw L/D ratio: 26 23.8 22 20.4 Accessories: Screw head, Rings, Nozzle Tip Set Base Materials: SACM645,SCM440,SKD61 Steel Process: Nitrided & Bimetallic & Chrome Hardness: HRC55-65 Suitable for: PP, PE, ABS, PET, PVC, PS ... Delivery time: 20-25 days
Screw diameter: 55mm 60mm 65mm 70mm
Screw L/D ratio: 26 23.8 22 20.4
Tech Introduction:
⁕Bimetallic Process :
Basis Materials: SACM645, SACM440, SKD61, SKD11
Hardness: 53-58 HRC
Coating Thickness: 1.5-2.0mm
Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%
Wear resistance: ★★★★★
Corrosion resistance: ★★★
Basis Materials: SACM645, SACM440, SKD61, SKD11
Chrome Thickness: 0.02-0.08mm
Hardness of Chrome: >700 HV
Finish Grade: Ra ≤0.4
Allication: PVC and other high corrosive plastics
Wear resistance: ★★
Corrosion resistance: ★★★★★
⁕Full Hardened Process:
Basis Materials: DC53, D2, M2, SKD61, SKD11 ...
Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni
Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)
Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%
Wear resistance: ★★★★★
Corrosion resistance: ★★★★★
FAQS:
Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your 30% TT.
Q: What is your factory delivery time ?
A: Standard delivery time is 20 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15 days, also we have 2000 stock items ready to ship out.
Q: What is your accepted payment type?
A: T/T ,Western Union and Alipay
Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.
Q: What is your warranty Time ?
A: Our warranty time is 12 months for all screw barrel and accessories products After delivery.
We manufacturing and offering screw barrels for :
Haitian Injection Molding Systems | ChenHsong Injection Molding Systems | Hwamda Injection Molding Systems |
Yizumi Injection Molding Systems | Nissei Injection Molding Systems | TOYO Injection Molding Systems |
Toshiba Injection Molding Systems | Borche Injection Molding Systems | Haida Injection Molding Systems |
JSW Injection Molding Systems | Arburg Injection Molding Systems | Engel Injection Molding Systems |
Krauss Maffei Injection Molding Systems | Battenfeld Extrusion Systems | Tederic Injection Molding Systems |
Cincinatti Milacron Injection Systems | Kawaguchi Injection Molding Systems | Jwell Extrusion Systems |
Sumitomo Injection Molding Systems | Tederic Injection Molding Systems | Fanuc Injection Molding Systems |
Haixing Injection Molding System |
Shipment:
1. The delivery time of our screw barrel is usually 20-25 days after drawings are confirmed.
2. Faster air shipment can by TNT, SF, FedEx, DHL, UPS, EMS and etc.
Bigger Barrel work of D175xOD410xL4540mm for Woo
General IMM Screws for PP with Nylon 30 percent
New bimetallic with chrome plating screws and ba
